Description

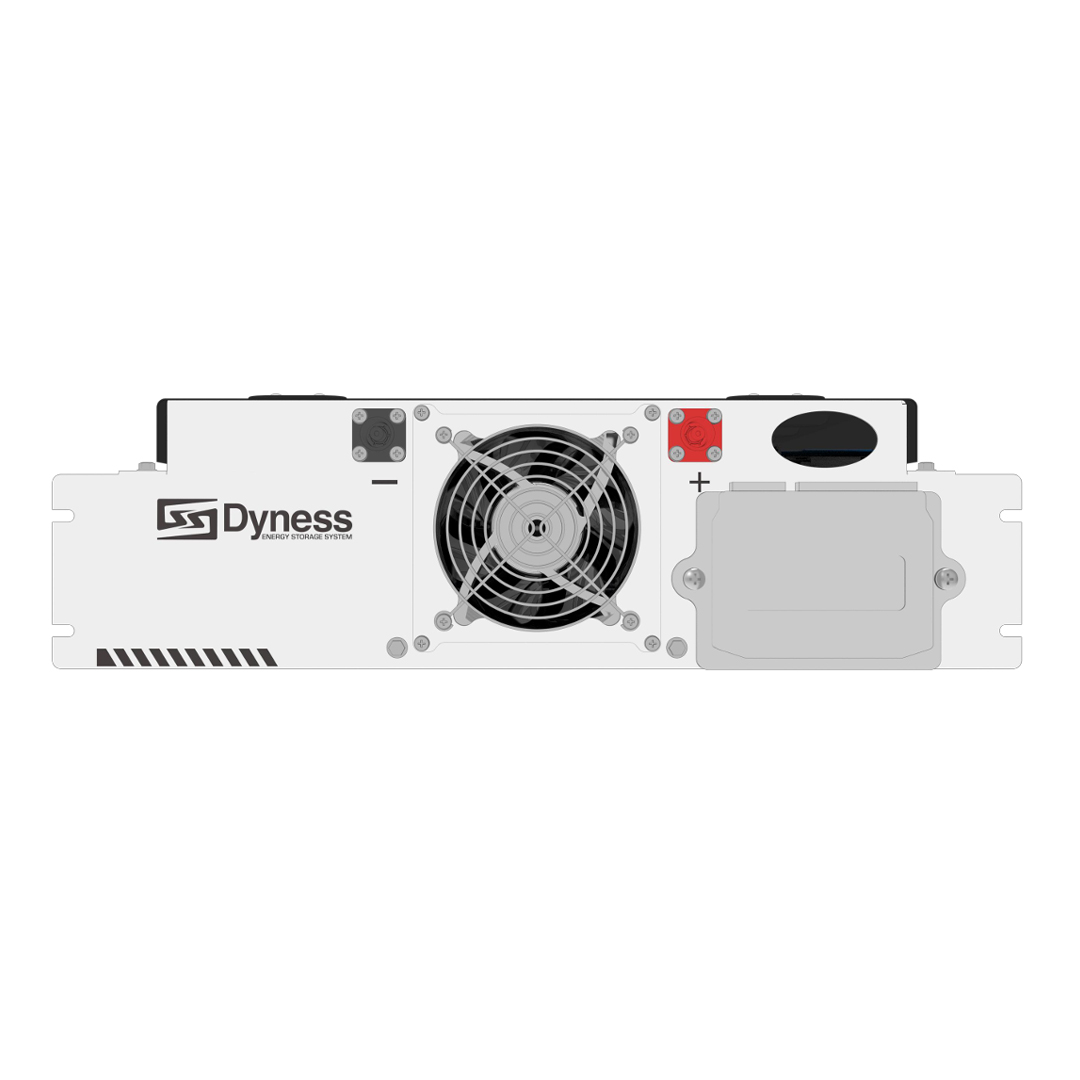

The Dyness HV51100F is a high-voltage lithium iron phosphate (LiFePO4) battery module designed for use in energy storage systems. With a rated voltage of 51.2V and a capacity of 100Ah, it provides an energy of 5.12 kWh.
Main characteristics:
Rated voltage: 51.2V
Capacity: 100Ah
Energy: 5.12 kWh
Maximum charging/discharging current: 100A (1C)
Dimensions: 548 x 554 x 152.8 mm
Weight: 47 kg
Communication: CAN/RS485
Protection rating: IP20
Charging operating temperature: 0°C to 55°C
Discharge operating temperature: -10°C to 55°C
Cycle life: over 6000 cycles at 95% discharge depth
This module is compatible with the BDU100 control module and can be configured in series of 7 to 15 modules, depending on the requirements of the system. It is suitable for indoor use and is ideal for applications in commercial and industrial environments where reliable and efficient energy storage is required.
We inform you that despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.
