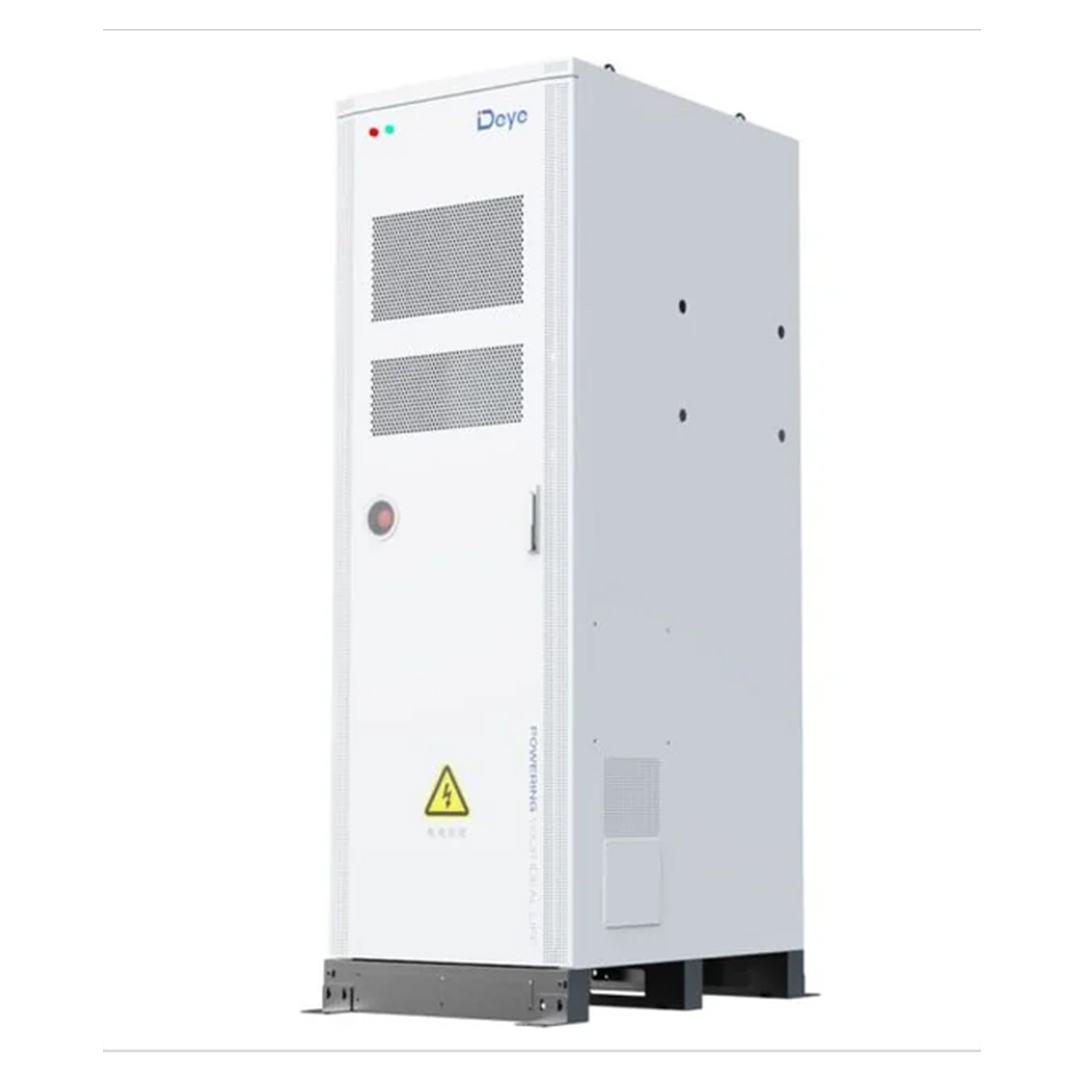

DEYE ESS 60kWh – Battery Cabinet (Battery Only, No Inverter)
20152,06 € / 0.00 BGN
Availability: Contact us
Main advantages:
-
✅ 60kWh capacity – ideal for load balancing, peak load and backup power
-
✅ Modular design – composed of several LFP modules (lithium iron phosphate) assembled in an industrial cabinet
-
✅ Intelligent BMS control – surge protection, portability, high temperature, etc.
-
✅ Compatible with hybrid and off-grid inverters from DEYE and other manufacturers
-
✅ Suitable for outdoor installation – IP55
-
✅ Extended life – over 6000 cycles at 90% DOD
-
✅ Integration with Energy Management Systems (EMS)
-
✅ Safety & Certification: CE, UN38.3, IEC62619
Out of stock
-
Description
-
Additional information
-
Documentation
Description
The DEYE ESS 60kWh is a high-efficiency energy storage system designed for commercial and industrial applications. It is a modular and scalable 60 kWh battery integrated into a rugged and safe cabinet that provides reliability, ease of installation, and long service life.
This configuration includes only the battery cabinet, no inverter, allowing for flexible selection of a compatible inverter according to the specific needs of the project.
Technical characteristics:
-
Battery Type: Lithium Iron Phosphate (LiFePO4)
-
Total capacity: 60 kWh
-
Rated voltage: 768V DC
-
Operating current: up to 100A
-
Cycle life: ≥6000 cycles (90% DOD)
-
Dimensions: approx. 1200 x 600 x 1800 mm (may vary)
-
Mounting: Rack-mounted system
-
Cooling: Built-in natural or forced cooling
-
Operating temperature: -10°C to +50°C
-
Communication: CAN/RS485 to Inverter & EMS
The set includes:
-
Battery cabinet with integrated LFP modules
-
Built-in BMS (Battery Management System)
-
Power Cables and Communication Interface
-
Installation and operation manual
Applications:
-
Commercial photovoltaic systems
-
Industrial sites with high consumption
-
Hybrid and offgrid installations
-
Backup Power Supply (UPS)
-
Peak load and reduction of electricity costs
-
Warranty and Support:
-
Warranty: 10 years / 6000 cycles
-
Support: Provided by DEYE Certified Partners
-
Possibility to extend the warranty upon request
- We inform you that despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors that cannot be a legal basis for claims.
