Description

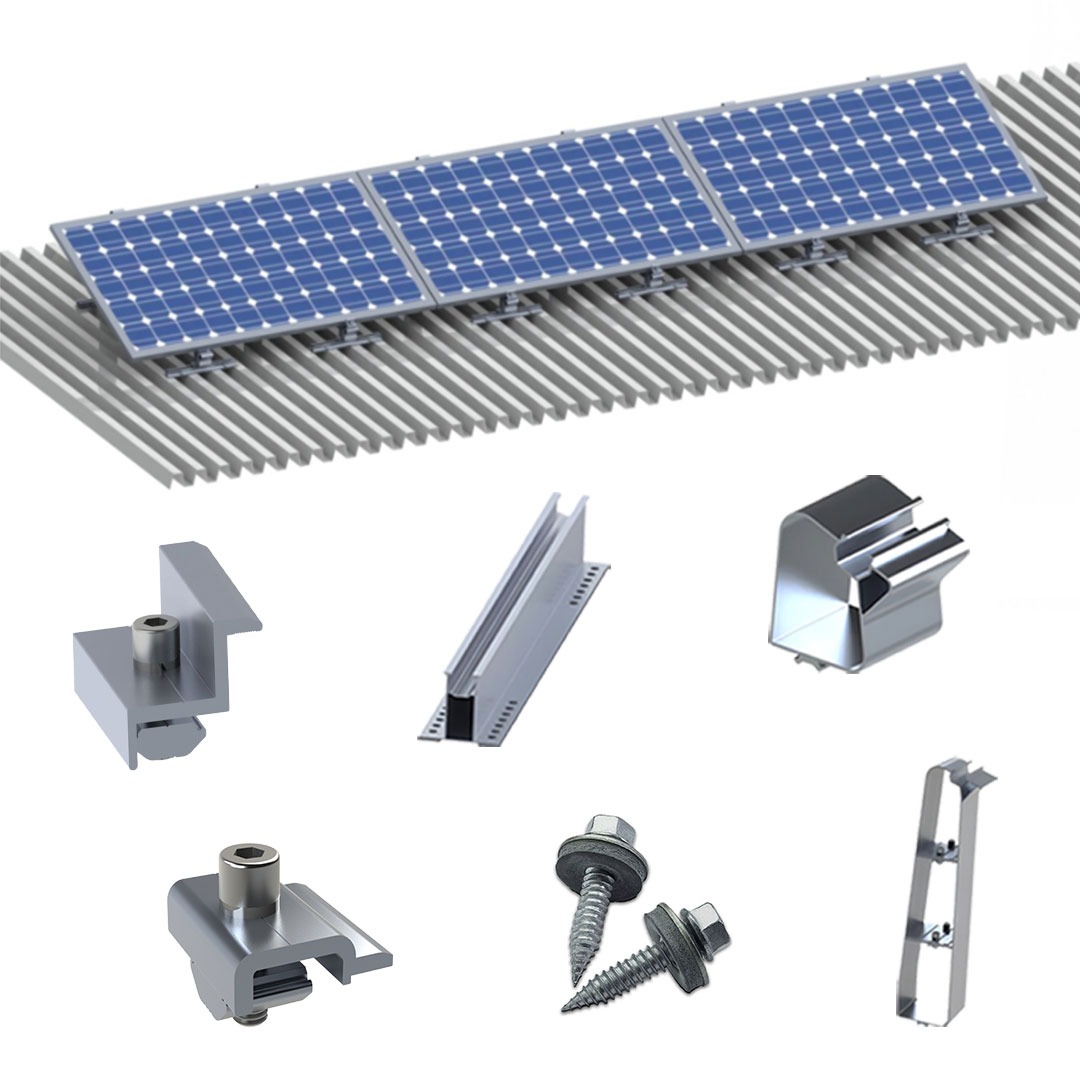

The kit for installing photovoltaic panels on a northern slope is a reliable solution that provides strength, durability and easy installation. It contains all the necessary components for installing one panel in landscape orientation, and all parts are made of high-quality materials. This ensures durability and stability even in adverse weather conditions.

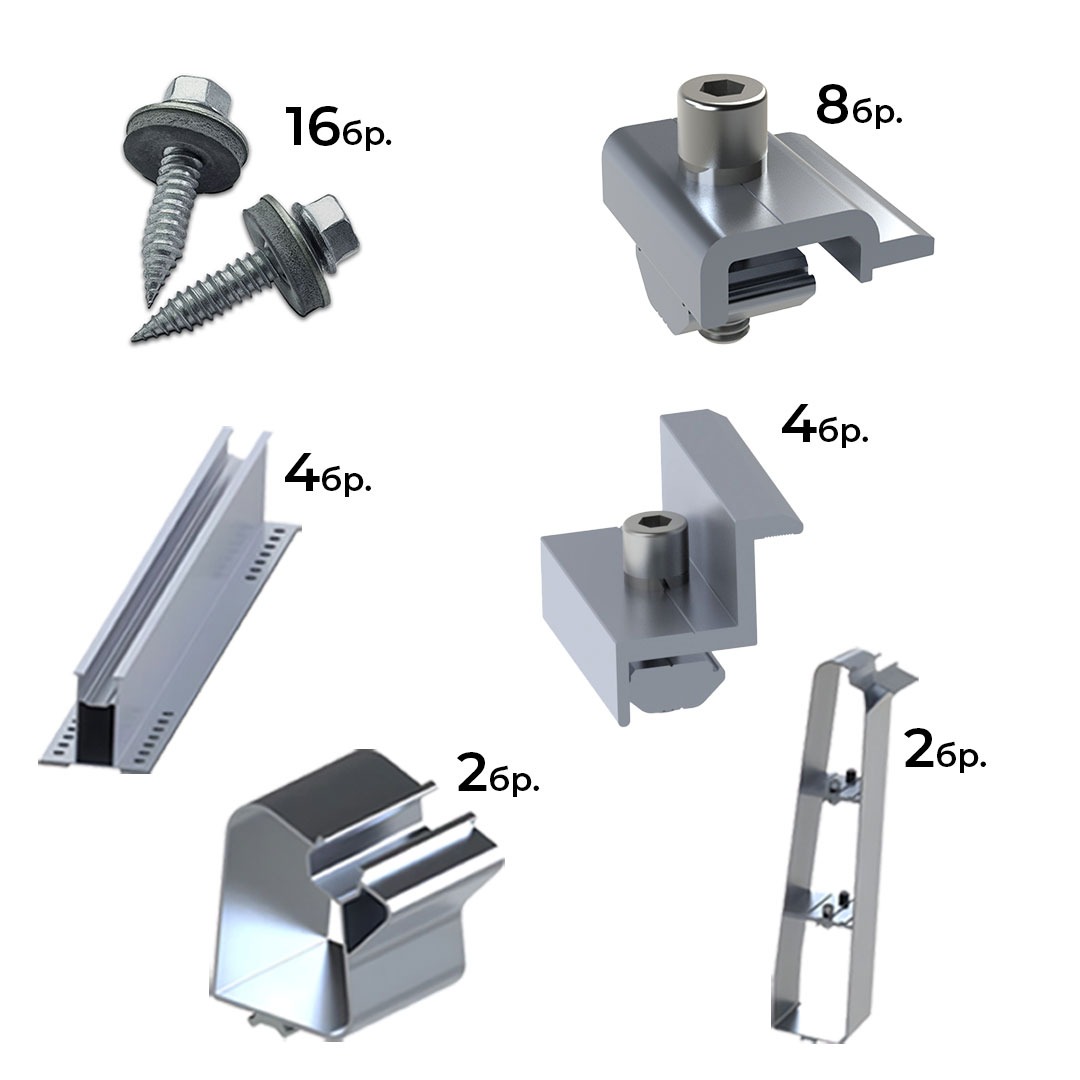

Contents of the set and description of the elements:
Clip for mini rail 04 (AR2-RC04) – 8 pcs.
Function: Fixes the panels to the mini rail, providing a stable attachment and protection against misalignment.
Self-tapping screw for metal sheets 6.0×25 mm (AR2-WS(C)) – 16 pcs.
Function: Provides a firm grip on the metal sheets of the roof, ensuring reliability and stability of the structure.
Hind leg 20°, L=80 mm, height 483 mm (AR2-RL) – 2 pcs.
Function: Supports the back of the structure, creating the optimal angle for mounting the photovoltaic panels.
Front leg 20°, L=80 mm, height 141 mm (AR2-FL) – 2 pcs.
Function: Supports the front of the structure, ensuring a strong and stable positioning of the panels.
End clip with mini rail nut universal 04 (30 mm, 35 mm, 40 mm) (AR2-EC04) – 4 pcs.
Function: Fixes the end panels to the structure, preventing movement and providing a secure fastening.
Mini rail high H27 mm + rubber seal 380 mm (AR2-MR13-380) – 4 pcs.
Function: Provides a firm attachment to the panels, with the rubber seal protecting the roof surface and reducing vibration.
Advantages of the construction:
- Robust & Reliable – Designed for maximum stability and durability
- Easy and quick installation – All necessary elements included
- Suitable for different types of roof structures
- Durable and high-quality materials
- Provides optimal angle for maximum panel efficiency
Certificate:https://amonraenergy.eu/wp-content/uploads/2025/02/СЕРТИФИКАТ.pdf
